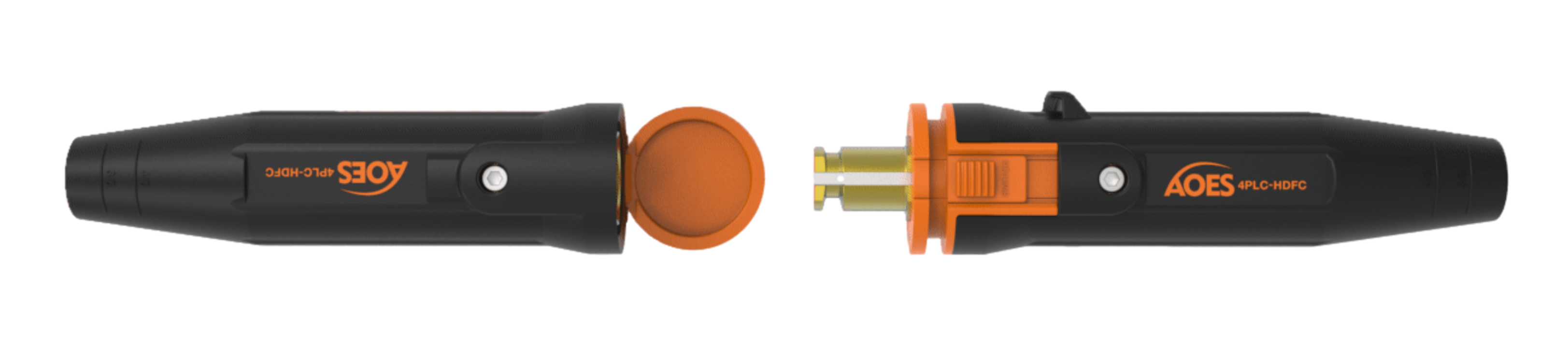

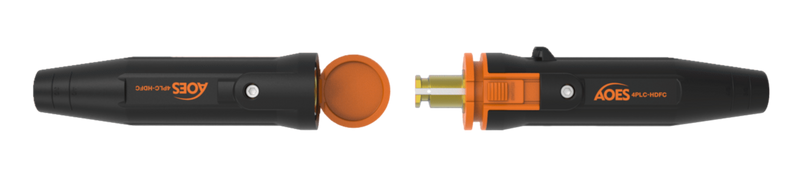

AO Connector - Standard Welding Connector with Safety Cap

THE CONNECTOR WITH A SAFETY CAP.
AOES welding connectors provide a positive cam action with a proprietary locking switch which optimizes the interface between connector halves. The connectors also feature a proprietary safety cap that automatically shuts when connector is disconnected. The connectors are interchangeable with most standard connectors and machines.

FEATURES

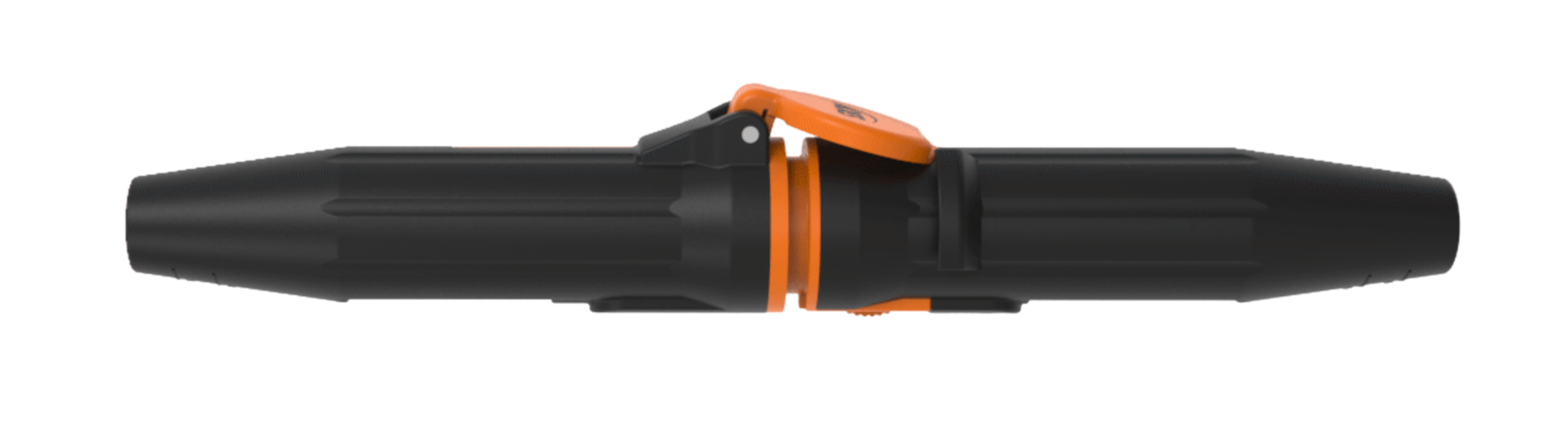

• Positive cam action locking design with safety lever
• Safety lever prevents connection separation until actuated

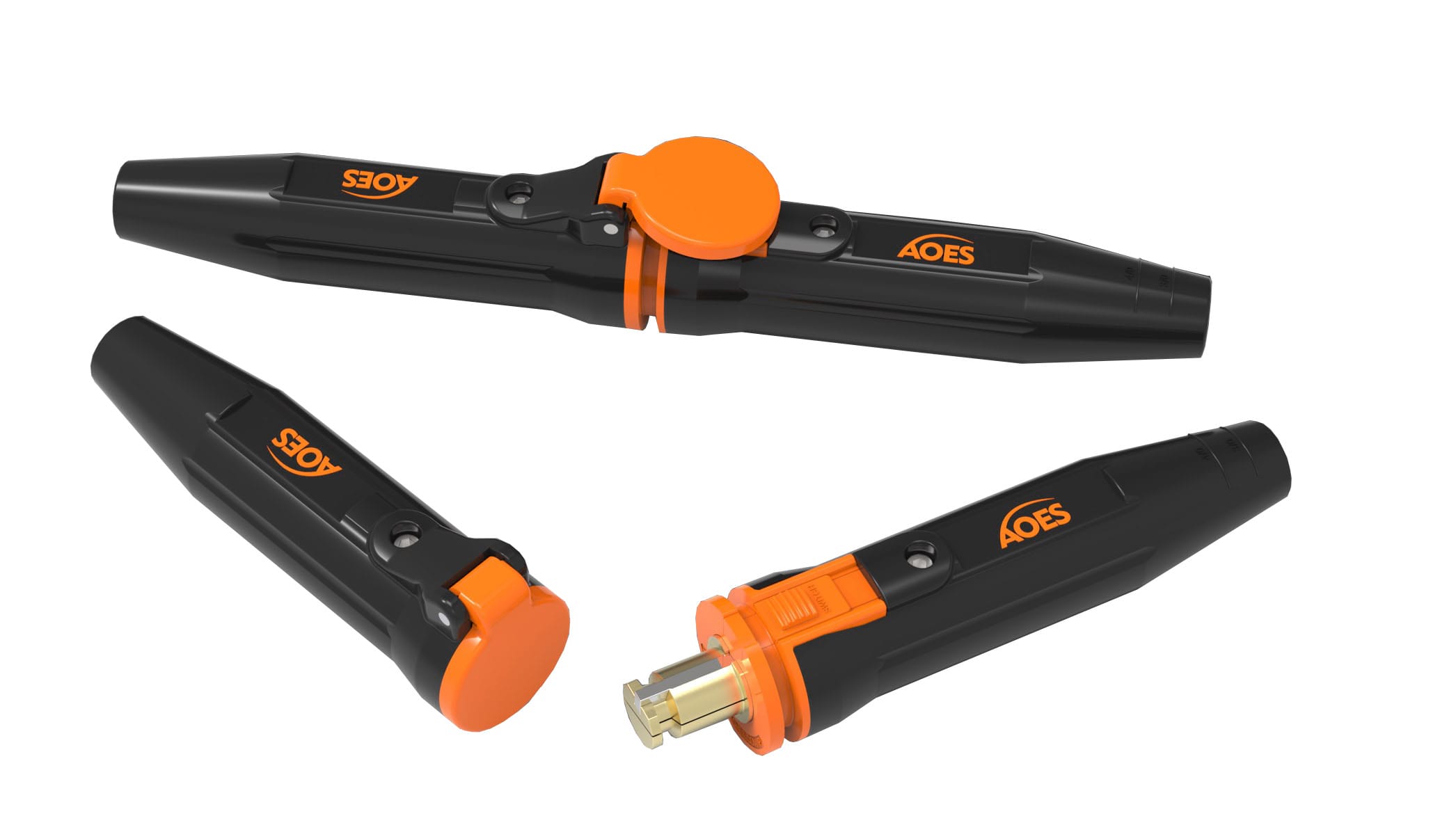

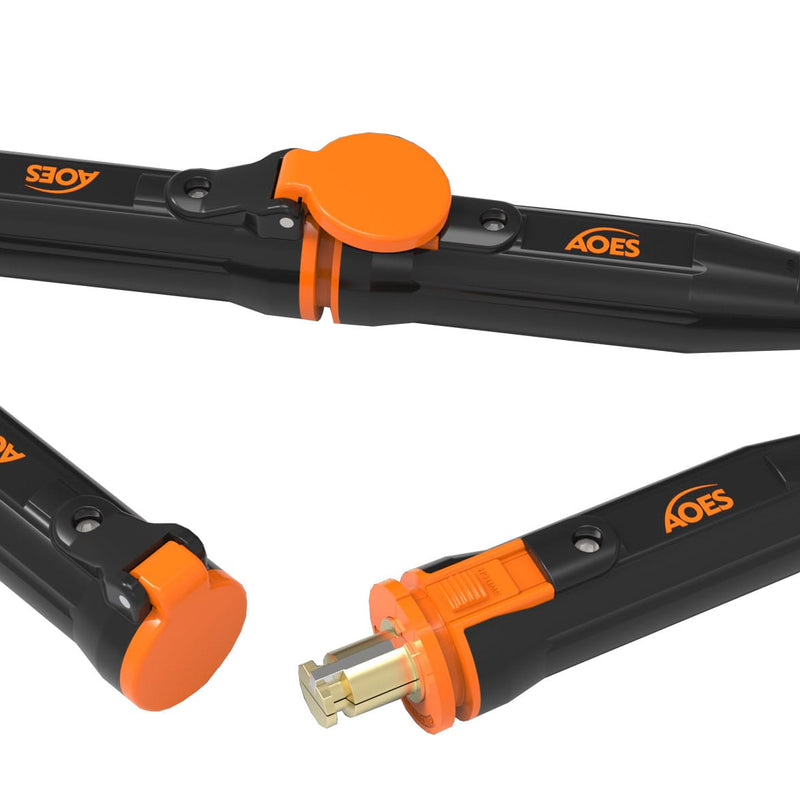

• Safety cap covers the live female side when not in use
• Thermoplastic Elastomer covers having a V0 flame rating
• Compatible with standard connectors and machines

THE SOLUTION TO:
Lead Connector Separation –Total and partial welding lead connector separation occurs frequently, leading to Arc Outs, Fires, Explosions, Electric Shock, Dropped Objects, and Voltage Drops.
Accidental Arc Strikes – Live exposed female connectors frequently cause Arc strikes, Fires, Explosions, Electric Shock, and damage to construction material.

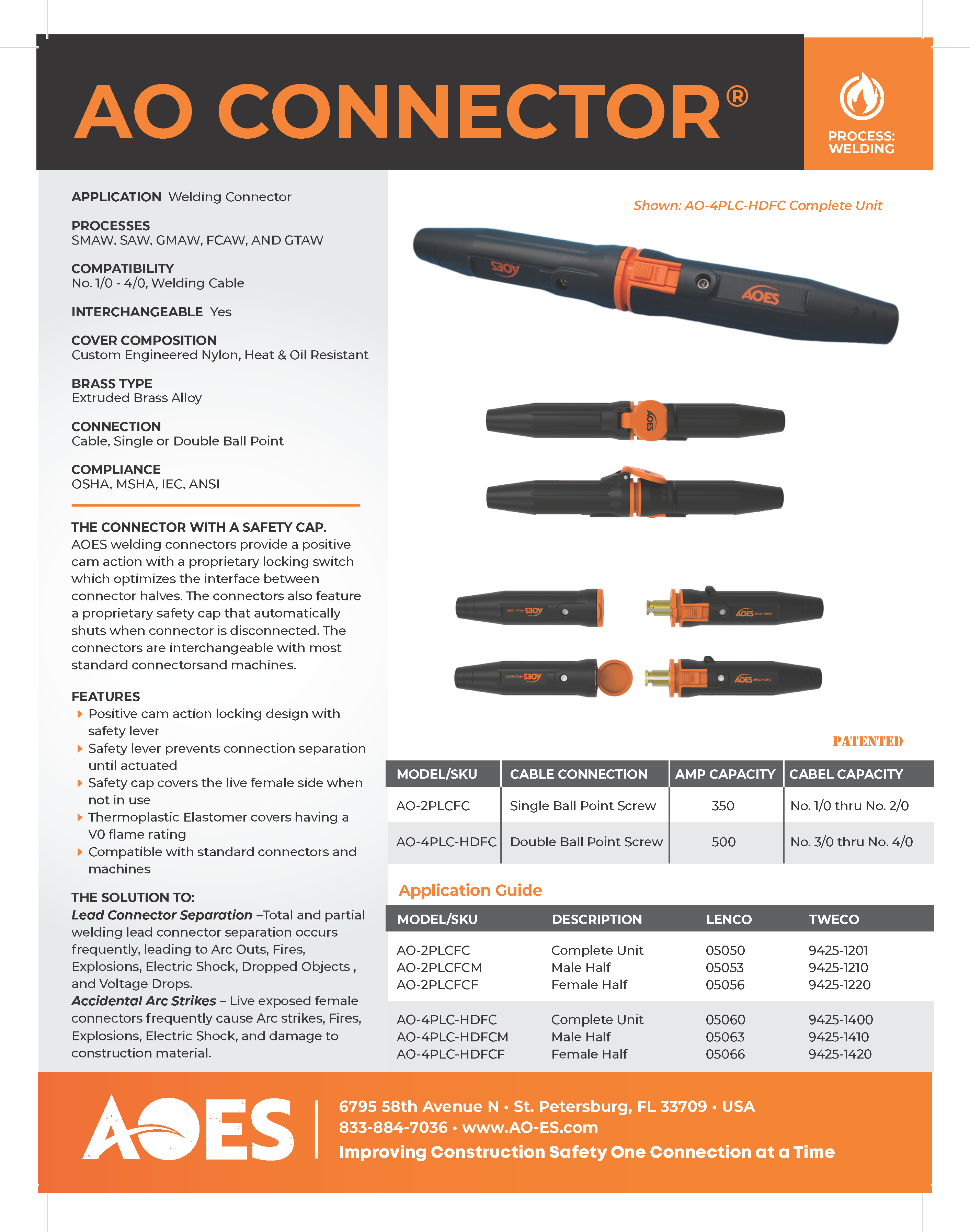

Specs:

APPLICATION
Welding Connector

AMP CAPACITY
350

CABEL CAPACITY
No. 1/0 thru No. 2/0

CABLE CONNECTION
Single Ball Point Screw

PROCESSES
SMAW, SAW, GMAW, FCAW, AND GTAW

COMPATIBILITY
No. 1/0 - 4/0, Welding Cable

INTERCHANGEABLE
Yes

COVER COMPOSITION
Custom Engineered Nylon, Heat & Oil Resistant

BRASS TYPE
Extruded Brass Alloy

CONNECTION
Cable, Single or Double Ball Point

COMPLIANCE
OSHA, MSHA, IEC, ANSI
